Diagnostic instruments
ECG Limb Electrode Set
Also called limb clamp electrode · ECG/EKG limb clip · resting-ECG clamp electrode

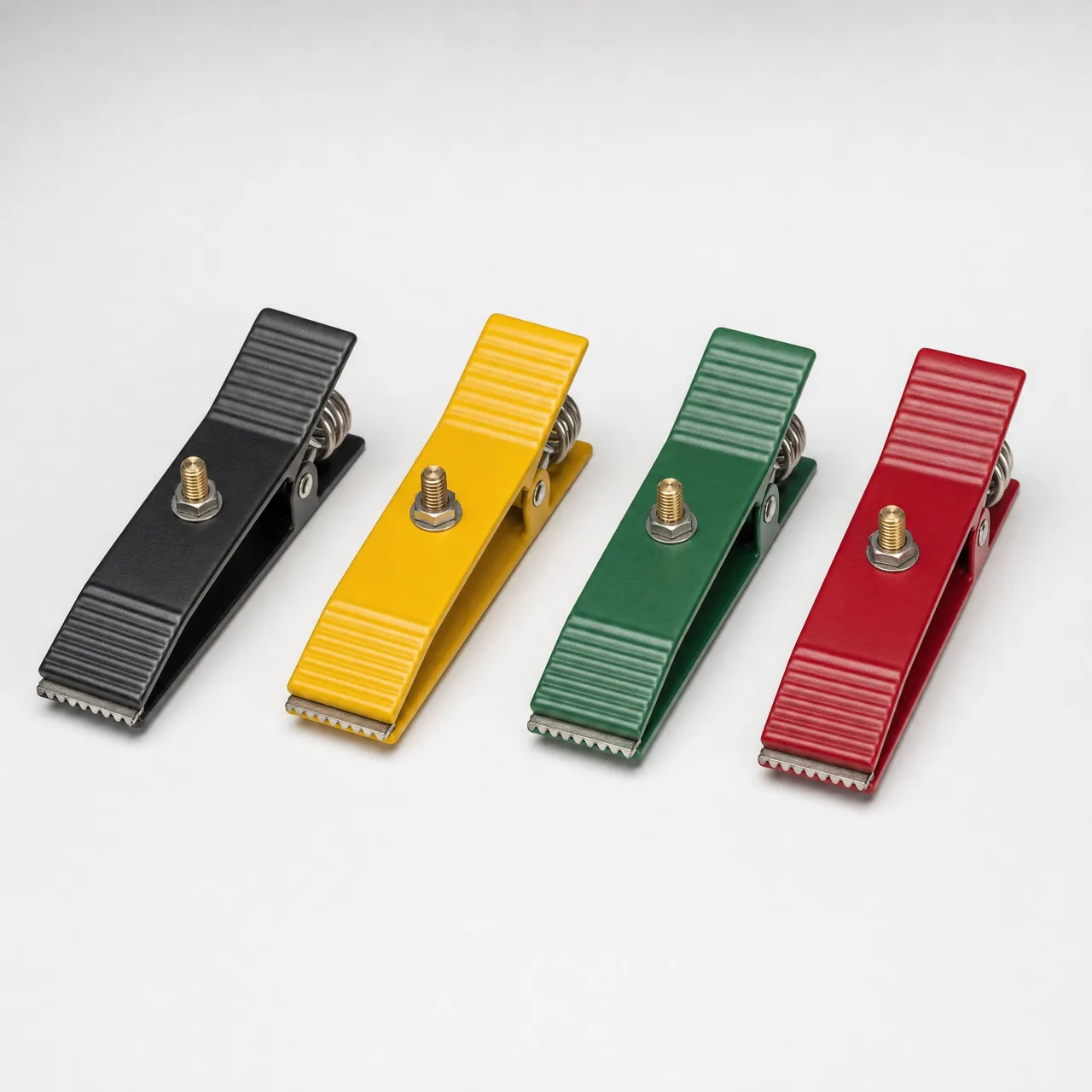

A reusable spring-clamp electrode that connects an ECG lead wire to the patient's skin at one of the four limb positions (RA, LA, RL, LL), used in diagnostic and monitoring electrocardiography.
What it is
A reusable, spring-loaded clamp that makes electrical contact between an ECG lead wire and the patient's skin at one of the four limb positions: right arm, left arm, right leg, left leg. It clamps directly onto the skin of the forearm or wrist and the lower leg or ankle, or onto a pre-gelled disposable pad. It is different from single-use adhesive tab electrodes, and from the separate chest electrode set that covers the six V1 to V6 positions.
Physicians, cardiologists, ECG technicians and nurses.
Full specification
- Category
- Diagnostic instruments
- Size
- Set of 4 limb electrodes: red, yellow, green, black
- Material
- AISI 304, German or Japanese steel
- Minimum order
- 150 sets
- Mixing sizes
- Whether one minimum may be spread across sizes and patterns is agreed per order.
- Lead time
- Instruments ~2-3 weeks · full sets ~4-6 weeks after advance.
- Supplied
- Non-sterile
- Also known as
- limb clamp electrode · ECG/EKG limb clip · resting-ECG clamp electrode
What it does
- Clamps onto the forearm or wrist and the lower leg or ankle at the four limb positions, carrying the heart's electrical signal from skin to lead wire.
- The four limb clips are the source for the six frontal-plane limb leads of a standard 12-lead ECG: I, II, III, aVR, aVL and aVF.
- The right leg clip is the reference or ground contact, not a signal electrode.
- Used in resting 12-lead diagnostic ECG, continuous bedside and telemetry monitoring, and exercise or stress ECG.
- Reusable across patients, with cleaning and disinfection required between patients.
Supplied as
Material
AISI 304, German or Japanese steel. This article is supplied in one material and is not offered in the four steel lines.
Also made as
Other versions of this instrument in the catalog, each at its own address with its photograph.
True of every order
Instruments are marked to the buyer's requirement (TGI, unmarked, or the buyer's own brand), agreed on the order.
Customized packaging is part of what TGI supplies. Your own printed boxes, your labels, your brand on the pack, or plain export packing, whichever your market needs. The packing for your order is agreed with you and confirmed on the order.
Manufactured under the quality management system covered by TGI's ISO 9001:2015 and ISO 13485:2016 certificates. Certificate numbers and the issuer's registry are on the certification page. Open the certificates
Every batch of steel is ordered to a specified grade and arrives with the mill's own certificate, which identifies the mill and states the grade. TGI checks the material at the factory against its own requirement before it goes into production. That check is TGI's own inspection, not an independent laboratory test.
TGI manufactures in its own factory in Sialkot and also supplies articles made by contracted partner workshops, to TGI's specification. Which applies to a given article is confirmed on your order.
One-year guarantee on Premium and Executive tier instruments, hollowware and sterilization containers: any technical manufacturing defect, including material faults and rust, is replaced free of charge. Damage from handling or accidents is not covered. The year runs from the day the goods leave Sialkot.
If something is wrong with a delivery (a manufacturing defect, or a short or wrong article), tell us on WhatsApp within 7 days of delivery, with a video and photographs of what arrived. Replacement instruments are sent free of charge and dispatched within 24 hours of us seeing them; you pay the shipping, and they reach you as a normal order does.
Damage that happened after the goods left Sialkot is a claim against your carrier. The video of your parcel at the shipping office is sent to you before shipment and is the evidence that claim needs.
Next step
Ask for a quote on ECG Limb Electrode Set.
Tell us the quantity, and we answer with a written offer. Free samples for all buyers: you pay only the sample shipping cost. Samples dispatched within 48 hours.
- Payment
- Payment by TT bank transfer. Structures: 50/50, 70/30, or 100% advance, agreed per order. Balance always before shipment, released against video proof of your finished parcel at the shipping office.
- Freight
- Base price FCA Sialkot: TGI hands the goods and the export documents to your carrier or your own agent at the factory, and your tracking starts there. For a sea container the basis is FOB Karachi. The buyer pays freight: ship on your own carrier account or your own forwarder, or have delivery arranged through TGI's logistics partner and quoted per destination.
