Diagnostic instruments
ENT Diagnostic Set
Also called ENT examination set · Otoscope and ophthalmoscope set · Diagnostic ENT examination set · Veterinary otoscope and ophthalmoscope kit · Veterinary ENT diagnostic kit

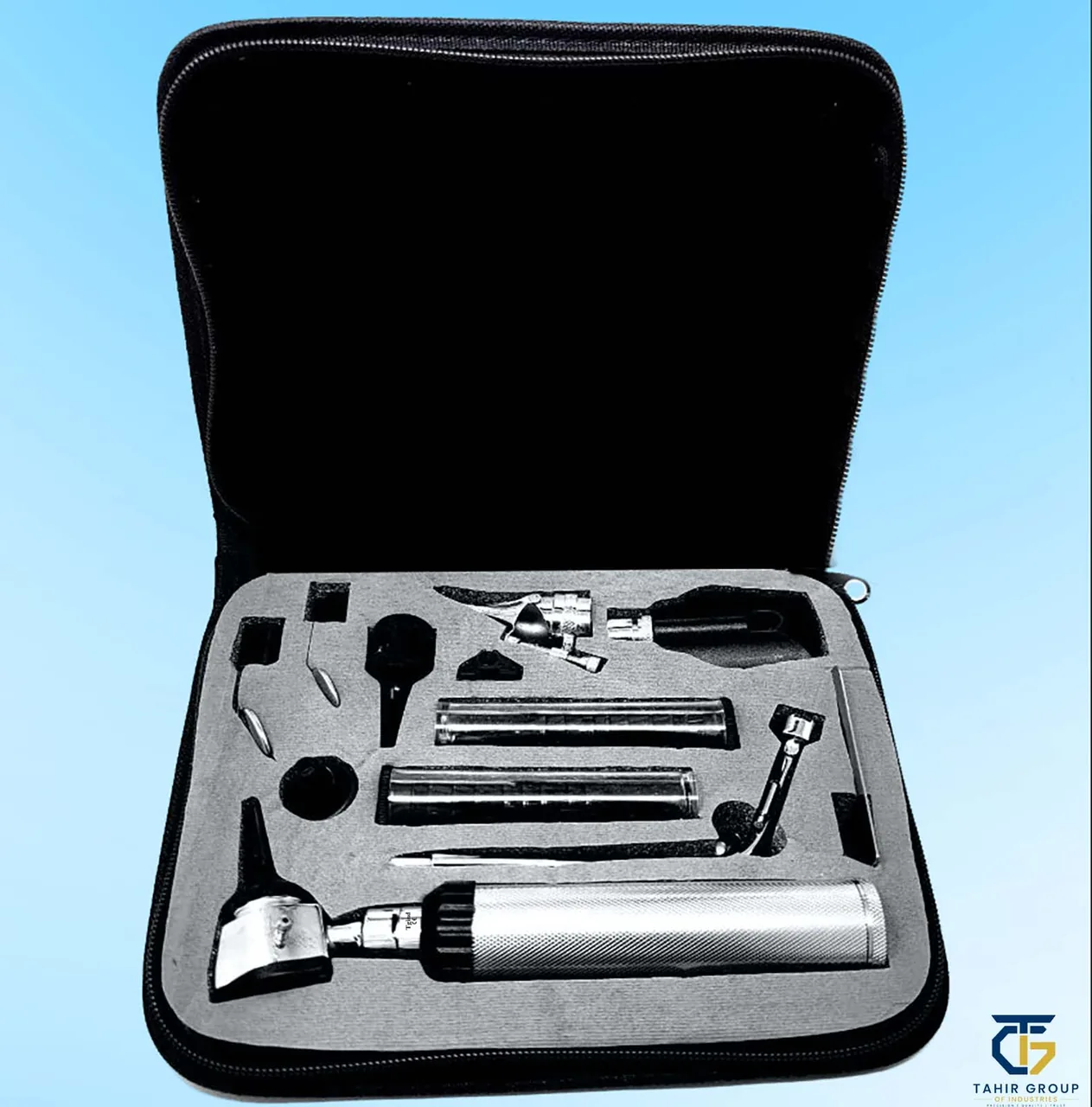

A diagnostic ENT examination set in a zipper pouch: a battery handle with an otoscope head and an ophthalmoscope head, ear specula in several sizes, a bent arm illuminator, a nasal adapter, two mirrors, spare bulbs and a tongue depressor. Made in more than one design and case.
Supplied as non-powered hand instruments. A battery handle can be fitted, but the battery and any powered part are added by the buyer. Tahir Group of Industries does not make, supply or source them.
CE marking under manufacturer self-declaration for Class I, non-sterile, non-powered instruments under Regulation (EU) 2017/745 (MDR). This is not a Notified Body certificate, and the issuer, CNC Services, is not a Notified Body.
What it is

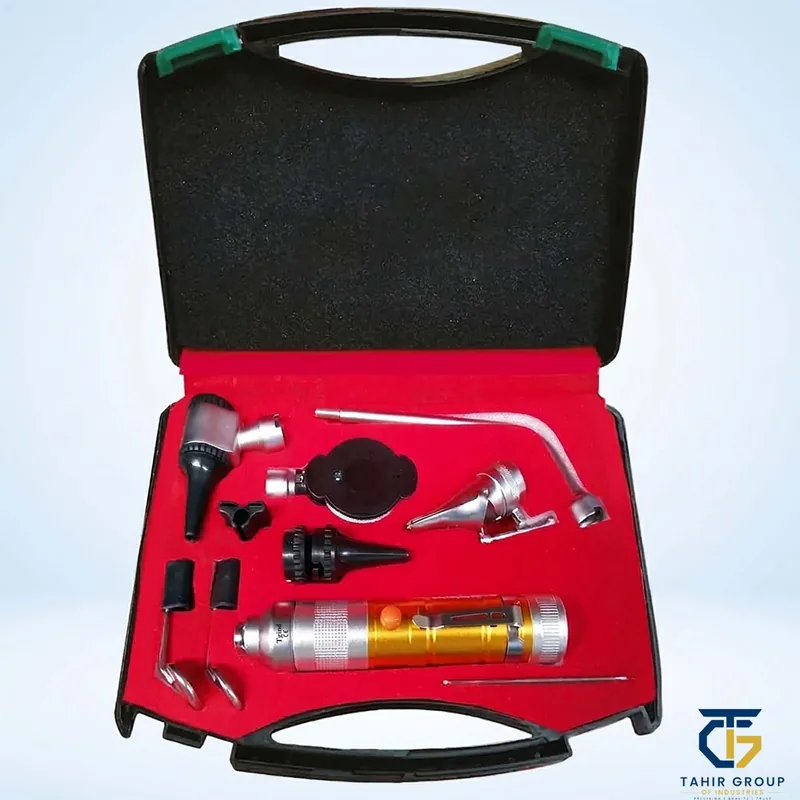

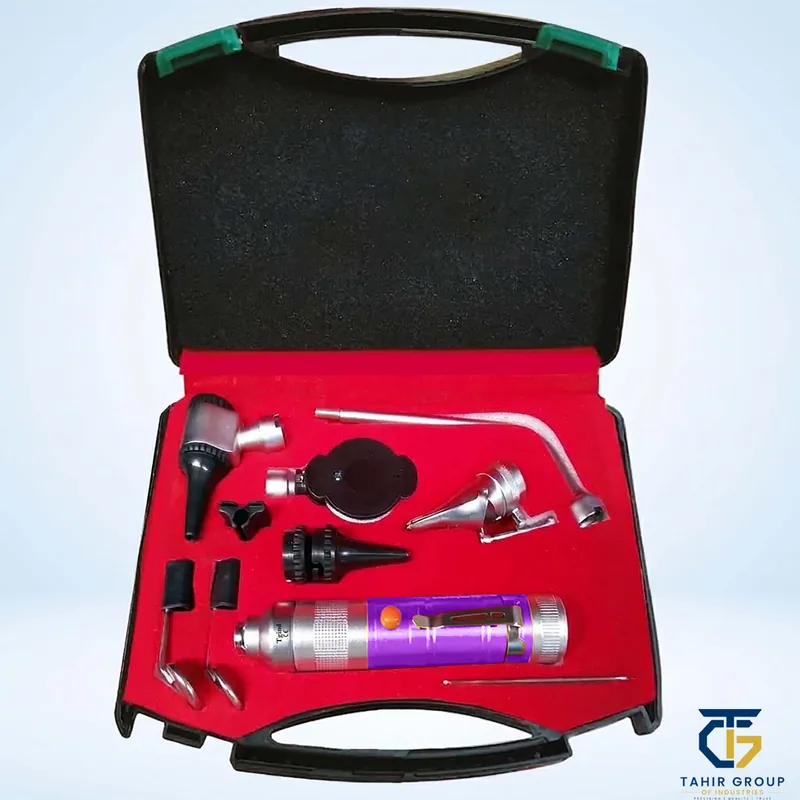

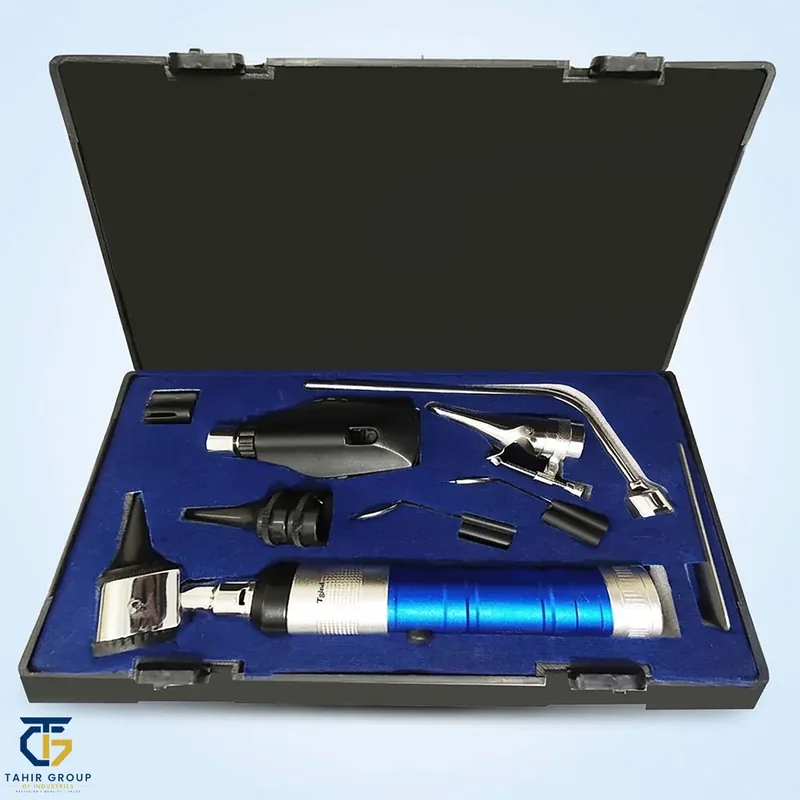

A diagnostic set for examining the ear, nose, throat and eye. One battery handle takes an otoscope head, for the ear canal and eardrum, and an ophthalmoscope head, for the eye. The set adds ear specula in several sizes, a bent arm illuminator and two mirrors for the throat and larynx, a nasal adapter for the nose, spare bulbs and a tongue depressor, all packed in a zipper pouch. It is also made in hard cases with a red or a blue lined tray and in several handle colors; the cased designs differ in case and tray, so ask for the piece list of the design you need. An LED bulb can be used in the heads. The batteries are not supplied.
ENT specialists, general physicians, nurses and trained clinical staff. Also used in veterinary practice.
Full specification
- Category
- Diagnostic instruments
- Sizes and patterns
- Mini ear specula: 2 mm, 3 mm and 4 mm · Large ear specula: No. 1 (small), No. 2 (medium) and No. 3 (large) · Ophthalmoscope lens wheel: -20 to +20 diopters, or made to the buyer's requirement
- Cases
- Zipper pouch · Hard case with a red lined tray · Hard case with a blue lined tray
- Handle colors
- Knurled steel · Blue · Green · Orange · Purple · Teal
- Steel lines
- Economy line: AISI 410 · Clinical line: AISI 420 · Premium line: AISI 420-440C · Executive line: AISI 440C
- Minimum order
- 150 sets
- Mixing sizes
- Whether one minimum may be spread across sizes and patterns is agreed per order.
- Lead time
- Instruments ~2-3 weeks · full sets ~4-6 weeks after advance.
- Supplied
- Non-sterile
- Set includes
- 1 - Battery handle, takes 2 C cells (not included) · 3 - Ear specula, No. 1, No. 2 and No. 3 (small, medium, large) · 1 - Bent arm illuminator · 1 - Nasal adapter · 1 - Head lens wheel · 2 - Mirrors, No. 4 and No. 5 · 4 - Spare bulbs · 1 - Tongue depressor · 20 - Mini specula, 2 mm, 3 mm and 4 mm · 1 - Zipper pouch
- Also known as
- ENT examination set · Otoscope and ophthalmoscope set · Diagnostic ENT examination set · Veterinary otoscope and ophthalmoscope kit · Veterinary ENT diagnostic kit
What it does
- The otoscope head examines the ear canal and the eardrum.
- The ophthalmoscope head examines the eye, with a lens wheel (-20 to +20 diopters, or made to the buyer's requirement) to bring the retina into focus.
- The bent arm illuminator and the two mirrors light and show the throat and the larynx.
- The nasal adapter examines the nasal passage.
- One handle serves every head, and the pouch or case keeps the set together as one item.
Steel & finish: you choose the line
How the four tiers differOne-year guarantee on Premium and Executive tier instruments, hollowware and sterilization containers: any technical manufacturing defect, including material faults and rust, is replaced free of charge. Damage from handling or accidents is not covered.
How to use and care
Otoscope (ear examination)
- Choose a speculum as wide as the ear canal allows without discomfort, and fit it onto the otoscope head.
- Switch the light on.
- Pull the outer ear gently up and back on an adult, or down and back on a small child, to straighten the canal.
- Hold the otoscope like a pen and rest the side of your hand against the patient's head, so the speculum moves with the head if the patient moves.
- Insert the speculum a short way into the canal and look through the window at the canal wall and the eardrum.
- Withdraw, switch the light off, and remove the speculum for cleaning or disposal.
Ophthalmoscope (eye examination)
- Dim the room and set the lens wheel to 0.
- Examine the patient's right eye with your right eye, and the left eye with your left eye.
- From about an arm's length away, shine the light into the pupil and find the red reflex.
- Move in close, following the red reflex, and turn the lens wheel until the retina comes into focus.
- Switch the light off when the examination is finished.
Care and cleaning
- Wipe the handle and the heads with a soft cloth dampened with a mild disinfectant. Do not immerse them in liquid and do not autoclave them.
- Clean and disinfect the reusable ear specula and the mirrors between patients, following your facility's procedure.
- Clean the viewing window and lenses with a lens cloth only.
- Take the batteries out when the instrument will not be used for a long time.
- Store every part in its case or pouch after use.
Questions importers ask
- What is the minimum order for ENT Diagnostic Set?
- 150 sets. Whether one minimum may be spread across sizes and patterns is agreed per order.
- Which sizes and patterns of ENT Diagnostic Set do you make?
- Mini ear specula: 2 mm, 3 mm and 4 mm; Large ear specula: No. 1 (small), No. 2 (medium) and No. 3 (large); Ophthalmoscope lens wheel: -20 to +20 diopters, or made to the buyer's requirement.
- Can I get a sample of ENT Diagnostic Set before a bulk order?
- Free samples for all buyers: you pay only the sample shipping cost. Samples dispatched within 48 hours.
- How long does an order take?
- Instruments ~2-3 weeks · full sets ~4-6 weeks after advance.
- Can ENT Diagnostic Set carry my own brand?
- Instruments are marked to the buyer's requirement (TGI, unmarked, or the buyer's own brand), agreed on the order. How the manufacturer is named on your label is agreed per order.
Buying for the United States? Terms for US importers and distributors.
Material and quality
| Line | Steel | Origin | Finish | Inspection |
|---|---|---|---|---|
| Economy line | AISI 410 | Pakistani or Taiwanese | satin, passivated | sample: visual + dimensional |
| Clinical line | AISI 420 | Pakistani or German | satin, passivated | sample + boil test |
| Premium line | AISI 420-440C | German or Japanese | fine polish, passivated | tighter sample + hardness test |
| Executive line | AISI 440C | German or Japanese | mirror polish, passivated | 100% inspection + laser mark |
This is the steel each line is made from as standard. A different origin can be supplied on request (a lower grade in Japanese steel, for example), agreed on your order.
Premium is the line where the choice is yours: 420 or 440C, agreed on your order. Economy is always 410 and Executive is always 440C. Those three are the instrument steels. Hollowware and sterilization containers are made in AISI 202 on a Clinical order and AISI 304 on a Premium or Executive one, and they are not offered in the Economy line at all, which is the section above.
True of every order
Instruments are marked to the buyer's requirement (TGI, unmarked, or the buyer's own brand), agreed on the order.
Customized packaging is part of what TGI supplies. Your own printed boxes, your labels, your brand on the pack, or plain export packing, whichever your market needs. The packing for your order is agreed with you and confirmed on the order.
Manufactured under the quality management system covered by TGI's ISO 9001:2015 and ISO 13485:2016 certificates. Certificate numbers and the issuer's registry are on the certification page. Open the certificates
Every batch of steel is ordered to a specified grade and arrives with the mill's own certificate, which identifies the mill and states the grade. TGI checks the material at the factory against its own requirement before it goes into production. That check is TGI's own inspection, not an independent laboratory test.
TGI manufactures in its own factory in Sialkot and also supplies articles made by contracted partner workshops, to TGI's specification. Which applies to a given article is confirmed on your order.
One-year guarantee on Premium and Executive tier instruments, hollowware and sterilization containers: any technical manufacturing defect, including material faults and rust, is replaced free of charge. Damage from handling or accidents is not covered. The year runs from the day the goods leave Sialkot.
If something is wrong with a delivery (a manufacturing defect, or a short or wrong article), tell us on WhatsApp within 7 days of delivery, with a video and photographs of what arrived. Replacement instruments are sent free of charge and dispatched within 24 hours of us seeing them; you pay the shipping, and they reach you as a normal order does.
Damage that happened after the goods left Sialkot is a claim against your carrier. The video of your parcel at the shipping office is sent to you before shipment and is the evidence that claim needs.
Next step
Ask for a quote on ENT Diagnostic Set.
Tell us the tier and the quantity, and we answer with a written offer. Free samples for all buyers: you pay only the sample shipping cost. Samples dispatched within 48 hours.
- Payment
- Payment by TT bank transfer. Structures: 50/50, 70/30, or 100% advance, agreed per order. Balance always before shipment, released against video proof of your finished parcel at the shipping office.
- Freight
- Base price FCA Sialkot: TGI hands the goods and the export documents to your carrier or your own agent at the factory, and your tracking starts there. For a sea container the basis is FOB Karachi. The buyer pays freight: ship on your own carrier account or your own forwarder, or have delivery arranged through TGI's logistics partner and quoted per destination.
