Diagnostic instruments
Conventional Laryngoscope Set
Web referenceTGI-C-12D9CC25Quote this to us. It identifies this page, not a factory part number.
Also called Intubation Laryngoscope Set
Conventional means the lamp sits in the blade itself, powered from the handle, rather than light being carried up the blade by fiber optics.
A laryngoscope set is a handle sold together with a range of interchangeable blades in one fitted case, so more than one size is to hand without buying each piece on its own. Every blade in the case fits the same ISO 7376 hook on fitting, so the handle takes all of them. What a case holds is a supplier's decision rather than a trade standard: the number of blades, which sizes and which pattern all vary. Two combinations recur in the catalogs read: an adult set of sizes 2, 3 and 4 with a standard handle taking a C cell, and a pediatric set of sizes 0, 1 and 2 with a small handle taking an AA cell. Macintosh and Miller are sold as separate cases in those catalogs rather than mixed in one. A set differs from a single laryngoscope, which is one handle and one blade, in being defined by what is in the case.
Minimum order150 pcsThe minimum for diagnostic instruments. Mixed orders are quoted against your list.
Lead timeInstruments ~2-3 weeks · full sets ~4-6 weeks after advance.
Quality control
The inspection step is set by the line you order.
- Economy line
- sample: visual + dimensional
- Clinical line
- sample + boil test
- Premium line
- tighter sample + hardness test
- Executive line
- 100% inspection + laser mark
Finish A color is a second choice, made on top of the line. Colored finishes on request, on any instrument, in addition to the steel line. Evidenced: black · gold · rose gold · blue · rainbow (anodised titanium).
How it is built

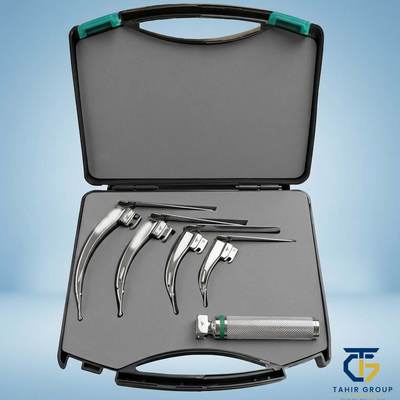

- One handle and a range of interchangeable blades, supplied together in a fitted case
- Every blade takes the same ISO 7376 hook on fitting as the handle
- The number of blades in a case, the sizes and the pattern vary by supplier, so a case is described by its own contents
- An adult set of sizes 2, 3 and 4 with a standard C cell handle recurs in the catalogs read
- A pediatric set of sizes 0, 1 and 2 with a small AA cell handle recurs in the catalogs read

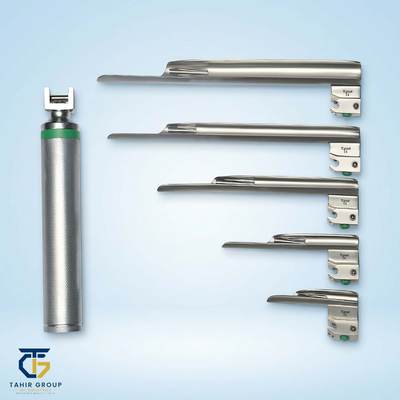

- Macintosh and Miller sets are sold as separate cases in those catalogs
- Illumination follows the blades in the case, conventional with the lamp in the blade or fiber optic with the lamp in the handle
PatternsMacintosh set · Miller set · Adult set · Pediatric set
The standard sizes this kind of instrument is made in
Adult set: blades 2, 3 and 4 with one standard handle on a C cell, in two of the catalogs read · Pediatric set: blades 0, 1 and 2 with one small handle on an AA cell, in one of the catalogs read · A case is defined by the contents the supplier puts in it, so these two are combinations that recur and not the whole range
These are the sizes the pattern is manufactured in across the trade. They are not a stock list. Tell us the size you need and we will quote against it.
This describes the laryngoscope set as an article. 4 other articles in this catalog share it: the sentence above is what separates this one. This describes the article. The steel, the finish and the inspection step are set by the line you order.
Main product
This article is one version of a product with a full specification page.
Material and quality
| Line | Steel | Origin | Finish | Inspection |
|---|---|---|---|---|
| Economy line | AISI 410 | Pakistani or Taiwanese | satin, passivated | sample: visual + dimensional |
| Clinical line | AISI 420 | Pakistani or German | satin, passivated | sample + boil test |
| Premium line | AISI 420-440C | German or Japanese | fine polish, passivated | tighter sample + hardness test |
| Executive line | AISI 440C | German or Japanese | mirror polish, passivated | 100% inspection + laser mark |
This is the steel each line is made from as standard. A different origin can be supplied on request (a lower grade in Japanese steel, for example), agreed on your order.
Premium is the line where the choice is yours: 420 or 440C, agreed on your order. Economy is always 410 and Executive is always 440C. Those three are the instrument steels. Hollowware and sterilization containers are made in AISI 202 on a Clinical order and AISI 304 on a Premium or Executive one, and they are not offered in the Economy line at all, which is the section above.
True of every order
Instruments are marked to the buyer's requirement (TGI, unmarked, or the buyer's own brand), agreed on the order.
Customized packaging is part of what TGI supplies. Your own printed boxes, your labels, your brand on the pack, or plain export packing, whichever your market needs. The packing for your order is agreed with you and confirmed on the order.
Manufactured under the quality management system covered by TGI's ISO 9001:2015 and ISO 13485:2016 certificates. Certificate numbers and the issuer's registry are on the certification page. Open the certificates
Every batch of steel is ordered to a specified grade and arrives with the mill's own certificate, which identifies the mill and states the grade. TGI checks the material at the factory against its own requirement before it goes into production. That check is TGI's own inspection, not an independent laboratory test.
TGI manufactures in its own factory in Sialkot and also supplies articles made by contracted partner workshops, to TGI's specification. Which applies to a given article is confirmed on your order.
One-year guarantee on Premium and Executive tier instruments, hollowware and sterilization containers: any technical manufacturing defect, including material faults and rust, is replaced free of charge. Damage from handling or accidents is not covered. The year runs from the day the goods leave Sialkot.
If something is wrong with a delivery (a manufacturing defect, or a short or wrong article), tell us on WhatsApp within 7 days of delivery, with a video and photographs of what arrived. Replacement instruments are sent free of charge and dispatched within 24 hours of us seeing them; you pay the shipping, and they reach you as a normal order does.
Damage that happened after the goods left Sialkot is a claim against your carrier. The video of your parcel at the shipping office is sent to you before shipment and is the evidence that claim needs.
