Diagnostic instruments
Ophthalmoscope
Web referenceTGI-C-40DCEF55Quote this to us. It identifies this page, not a factory part number.
Also called Funduscope · Fundoscope

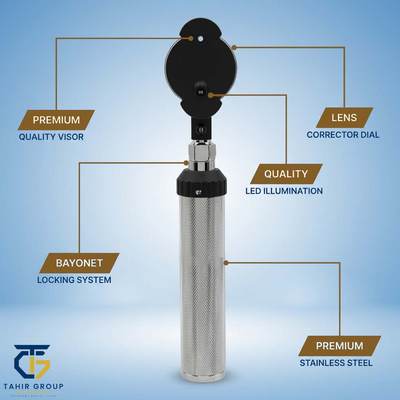

The full size ophthalmoscope head, built larger than the compact body the mini patterns in this family share.
A direct ophthalmoscope is a hand held diagnostic instrument built in two parts: a head carrying the optics and the light source, and a cylindrical handle that holds the batteries and screws onto the head. Inside the head a rotating lens wheel, the Rekoss disc, brings a graduated range of plus and minus correcting lenses into the viewing path, so the examiner can focus on the fundus without a separate hand held lens. The lenses step from one value to the next; the wheel is not a smooth dial. A second wheel selects among apertures and filters, commonly a small spot, a large spot, a slit, a fixation graticule, a red free filter and a cobalt blue filter, each suited to a different part of the examination. Handles are built in 2.5 V and 3.5 V systems, the higher voltage giving more light. It differs from an indirect ophthalmoscope, which is worn on the head or held at a distance and used together with a separate condensing lens to give a wider, inverted view of the retina, where the direct instrument gives a narrower, upright one close to the eye. ISO 10942 sets out the requirements and test methods for direct ophthalmoscopes, and ISO 10943 does the same for indirect ones.
Minimum order150 pcsThe minimum for diagnostic instruments. Mixed orders are quoted against your list.
MaterialAnodized aluminum body
Lead timeInstruments ~2-3 weeks · full sets ~4-6 weeks after advance.
How it is built
- Two part build: an optics and illumination head plus a cylindrical battery handle, joined by a screw thread
- Rotating lens wheel, the Rekoss disc, carrying a graduated range of plus and minus correcting lenses in single steps rather than a continuous dial
- Separate aperture and filter selector: commonly a small spot, a large spot, a slit, a fixation graticule, a red free filter and a cobalt blue filter, with a half moon spot on wider sets
- Light aimed through a mirror or a prism along the viewing axis
- Handle in a 2.5 V or a 3.5 V system, matched to the head, the higher voltage giving more light
- Lamp replaceable at the head; halogen and LED light sources are both current
- Direct pattern is hand held and needs no separate lens; indirect pattern is head worn or held at a distance and is used with a separate condensing lens
- ISO 10942 covers direct ophthalmoscopes and ISO 10943 covers indirect ophthalmoscopes
PatternsDirect ophthalmoscope · Indirect ophthalmoscope
The standard sizes this kind of instrument is made in
Pocket and entry heads: lens wheels of about 18 correcting lenses spanning roughly plus 20 D to minus 20 D in named steps · Standard clinical heads: lens wheels of 28 to 29 correcting lenses spanning about minus 25 D to plus 40 D · Wider heads: single dioptre steps across a published range of 89 values, from plus 45 D to minus 44 D · Aperture and filter wheels: commonly 4 to 6 positions, the set most often published being a small spot, a large spot, a slit, a fixation graticule, a red free filter and a cobalt blue filter · Handle systems: 2.5 V and 3.5 V. The difference is the light output, not a dimension · The dioptre range goes with the tier of head fitted, so it is read as the span the kind of instrument is made across and not as one figure for every pattern
These are the sizes the pattern is manufactured in across the trade. They are not a stock list. Tell us the size you need and we will quote against it.
This describes the ophthalmoscope as an article. 8 other articles in this catalog share it: the sentence above is what separates this one. This describes the article. The material it is made of is printed above; it is not offered in the four steel lines.

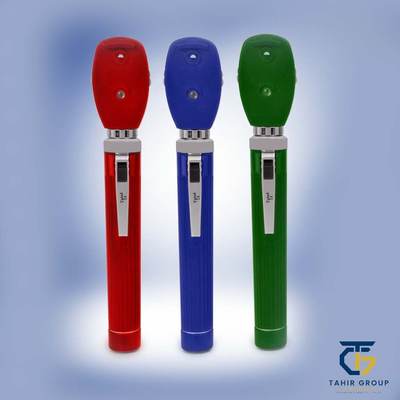

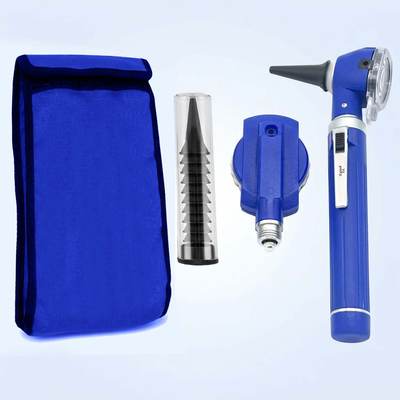

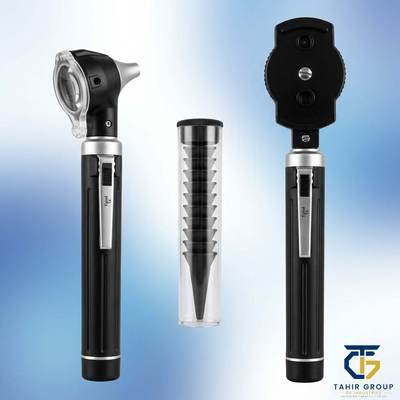

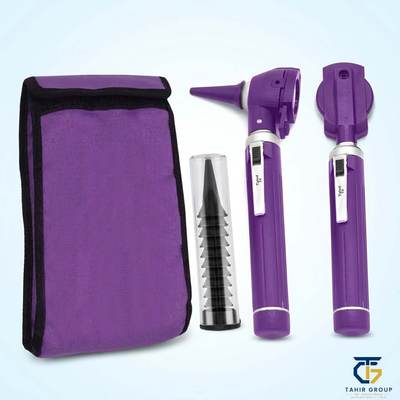

Other versions
The same instrument in another figure, finish, size, color or case, each at its own address with its photograph.
True of every order
Instruments are marked to the buyer's requirement (TGI, unmarked, or the buyer's own brand), agreed on the order.
Customized packaging is part of what TGI supplies. Your own printed boxes, your labels, your brand on the pack, or plain export packing, whichever your market needs. The packing for your order is agreed with you and confirmed on the order.
Manufactured under the quality management system covered by TGI's ISO 9001:2015 and ISO 13485:2016 certificates. Certificate numbers and the issuer's registry are on the certification page. Open the certificates
Every batch of steel is ordered to a specified grade and arrives with the mill's own certificate, which identifies the mill and states the grade. TGI checks the material at the factory against its own requirement before it goes into production. That check is TGI's own inspection, not an independent laboratory test.
TGI manufactures in its own factory in Sialkot and also supplies articles made by contracted partner workshops, to TGI's specification. Which applies to a given article is confirmed on your order.
One-year guarantee on Premium and Executive tier instruments, hollowware and sterilization containers: any technical manufacturing defect, including material faults and rust, is replaced free of charge. Damage from handling or accidents is not covered. The year runs from the day the goods leave Sialkot.
If something is wrong with a delivery (a manufacturing defect, or a short or wrong article), tell us on WhatsApp within 7 days of delivery, with a video and photographs of what arrived. Replacement instruments are sent free of charge and dispatched within 24 hours of us seeing them; you pay the shipping, and they reach you as a normal order does.
Damage that happened after the goods left Sialkot is a claim against your carrier. The video of your parcel at the shipping office is sent to you before shipment and is the evidence that claim needs.
