Surgical instruments
Foman Angular Scissors TC
Web referenceTGI-C-EBFE53C0Quote this to us. It identifies this page, not a factory part number.
Sizes TGI publishes20cm Printed on TGI's own catalogue photograph of this article.
Also printed on the photographAngular · Serrated Blades Printed on TGI's own catalogue photograph of this article.
Also called fomon angular scissors

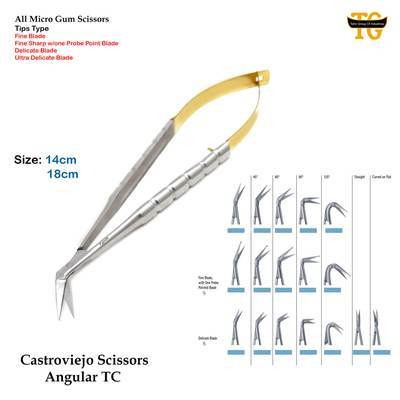

A ring-handled pattern built to a heavier scale than the spring-handled castroviejo angular scissor tc in this family.
Angular scissors are surgical scissors whose blades sit at a fixed angle to the shank instead of running straight in line with it or curving only within the blade's own plane. The bend is formed at the joint area, called an angled or angular shank, and is made in set degrees, commonly 25°, 45°, 60°, 90° and 120° or 125°. This is what separates a Castroviejo angled pattern, or a Fomon (Foman) or Cottle dorsal scissors, from the straight and in-plane-curved scissors next to them in a catalog. Blades are made plain, one blade micro-serrated, or with tungsten-carbide inserts bonded into the cutting edges.
Minimum order300 instrumentsThe minimum for surgical instruments. Mixed orders are quoted against your list.
Lead timeInstruments ~2-3 weeks · full sets ~4-6 weeks after advance.
Quality control
The inspection step is set by the line you order.
- Economy line
- sample: visual + dimensional
- Clinical line
- sample + boil test
- Premium line
- tighter sample + hardness test
- Executive line
- 100% inspection + laser mark
Finish A color is a second choice, made on top of the line. Colored finishes on request, on any instrument, in addition to the steel line. Evidenced: black · gold · rose gold · blue · rainbow (anodised titanium).
How it is built
- Two-piece build with blades set at a fixed angle to the shank (25°, 45°, 60°, 90°, 120°/125° are cataloged)
- Box joint or screw joint at the bend; ring handles or flat spring handles
- Blade edges made plain, or with one blade micro-serrated
- Tungsten-carbide inserts bonded into the cutting edges are a cataloged variant alongside plain stainless-steel blades
- Made in fine and micro-fine ground blade widths
- Named patterns include Castroviejo (round-handle and flat-handle forms), Fomon (Foman) dorsal, Cottle dorsal, Potts-Smith angled and Diethrich angled
- Stainless steel body; tungsten carbide only at the bonded insert
PatternsCastroviejo (round handle) · Castroviejo (flat handle) · Fomon (Foman) dorsal · Cottle dorsal · Potts-Smith angled · Diethrich angled
The standard sizes this kind of instrument is made in
Castroviejo angled fine blades: 4-1/2 in (11.5 cm) and 4-1/4 in (11.0 cm), in 25°, 45°, 60°, 90° and 125° angles · Castroviejo angled micro-fine blades: 4-1/4 in (11.0 cm) and 4-1/8 in (10.5 cm), same angle range · Castroviejo angled flat-handle fine blades: 4-1/2 in (11.5 cm), 25° and 45° · Fomon (Foman) dorsal scissors: 5-1/8 in (13.0 cm), rounded blades · Cottle dorsal scissors: 6-1/4 in (15.9 cm), rounded blades · Diethrich angled scissors with tungsten-carbide inserts: 7 in (17.5 cm), in 25°, 45°, 60°, 90° and 120° angles · Potts-Smith angled scissors with tungsten-carbide inserts: 7-1/2 in (19.0 cm), in 25° and 45° angles
These are the sizes the pattern is manufactured in across the trade. They are not a stock list. Tell us the size you need and we will quote against it.
This describes the angular scissors as an article. 1 other article in this catalog shares it: the sentence above is what separates this one. This describes the article. The steel, the finish and the inspection step are set by the line you order.
Material and quality
| Line | Steel | Origin | Finish | Inspection |
|---|---|---|---|---|
| Economy line | AISI 410 | Pakistani or Taiwanese | satin, passivated | sample: visual + dimensional |
| Clinical line | AISI 420 | Pakistani or German | satin, passivated | sample + boil test |
| Premium line | AISI 420-440C | German or Japanese | fine polish, passivated | tighter sample + hardness test |
| Executive line | AISI 440C | German or Japanese | mirror polish, passivated | 100% inspection + laser mark |
This is the steel each line is made from as standard. A different origin can be supplied on request (a lower grade in Japanese steel, for example), agreed on your order.
Premium is the line where the choice is yours: 420 or 440C, agreed on your order. Economy is always 410 and Executive is always 440C. Those three are the instrument steels. Hollowware and sterilization containers are made in AISI 202 on a Clinical order and AISI 304 on a Premium or Executive one, and they are not offered in the Economy line at all, which is the section above.
True of every order
Instruments are marked to the buyer's requirement (TGI, unmarked, or the buyer's own brand), agreed on the order.
Customized packaging is part of what TGI supplies. Your own printed boxes, your labels, your brand on the pack, or plain export packing, whichever your market needs. The packing for your order is agreed with you and confirmed on the order.
Manufactured under the quality management system covered by TGI's ISO 9001:2015 and ISO 13485:2016 certificates. Certificate numbers and the issuer's registry are on the certification page. Open the certificates
Every batch of steel is ordered to a specified grade and arrives with the mill's own certificate, which identifies the mill and states the grade. TGI checks the material at the factory against its own requirement before it goes into production. That check is TGI's own inspection, not an independent laboratory test.
TGI manufactures in its own factory in Sialkot and also supplies articles made by contracted partner workshops, to TGI's specification. Which applies to a given article is confirmed on your order.
One-year guarantee on Premium and Executive tier instruments, hollowware and sterilization containers: any technical manufacturing defect, including material faults and rust, is replaced free of charge. Damage from handling or accidents is not covered. The year runs from the day the goods leave Sialkot.
If something is wrong with a delivery (a manufacturing defect, or a short or wrong article), tell us on WhatsApp within 7 days of delivery, with a video and photographs of what arrived. Replacement instruments are sent free of charge and dispatched within 24 hours of us seeing them; you pay the shipping, and they reach you as a normal order does.
Damage that happened after the goods left Sialkot is a claim against your carrier. The video of your parcel at the shipping office is sent to you before shipment and is the evidence that claim needs.
