Orthopedic instruments
Champy Bone Biopsy
TGI referenceTG 11-01-0453Quote this to us. It is printed on TGI's own catalog photograph of this article.TGI-C-B7EF11DD Web reference. It identifies this page, not a factory part number.
Sizes TGI publishes22 cm / 8 ¾" · A) Outer Dia: 5mm / Inner Dia: 4mm · B) Outer Dia: 8mm / Inner Dia: 7mm Printed on TGI's own catalogue photograph of this article.
Also called champy-osu bone biopsy instrument · Bone Marrow Biopsy Needle

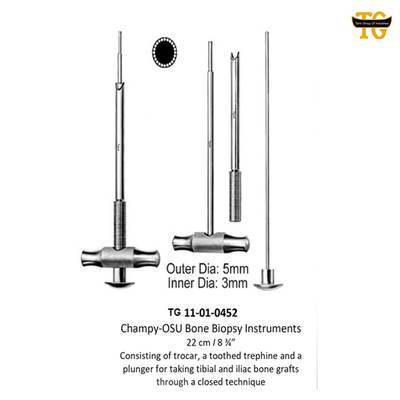

A cannulated trocar-and-toothed-trephine set with an internal plunger, built to core out a cylindrical bone-graft sample through a closed approach, rather than grasping tissue between jaws the way a biopsy forceps does.
A bone biopsy needle is a reusable trocar-and-cannula instrument used to take a core sample of bone, bone marrow, or a small bone graft through the skin or a small incision. In its simplest, two-part form a pointed or bevel-tipped outer cannula is advanced into the bone with a close-fitting inner stylet filling its bore; the stylet is withdrawn once the cannula is seated so the hollow cannula alone can then be pushed further to cut and retain a core of tissue. A second, three-part pattern adds a toothed trephine between the trocar and the outer cannula, plus a plunger to eject the retained specimen, and is built for taking a cylindrical tibial or iliac bone graft through a closed, percutaneous technique. A cross-bar or T-handle at the proximal end gives the hand the grip needed to turn and advance the instrument; the trephine family is commonly sold in a small, a medium and a large outer-diameter size.
Minimum order300 instrumentsThe minimum for orthopedic instruments. Mixed orders are quoted against your list.
Lead timeInstruments ~2-3 weeks · full sets ~4-6 weeks after advance.
Quality control
The inspection step is set by the line you order.
- Economy line
- sample: visual + dimensional
- Clinical line
- sample + boil test
- Premium line
- tighter sample + hardness test
- Executive line
- 100% inspection + laser mark
Finish A color is a second choice, made on top of the line. Colored finishes on request, on any instrument, in addition to the steel line. Evidenced: black · gold · rose gold · blue · rainbow (anodised titanium).
How it is built
- Two-part pattern: an outer hollow cannula with a cutting or piercing tip, and a close-fitting inner stylet that fills the bore during insertion
- Three-part pattern: a pointed trocar, a toothed outer trephine (cannula), and a plunger that ejects the retained core, built for closed-technique tibial or iliac bone-graft harvest
- Cannula or trephine tip formed as a bevel, trocar point, or toothed (crown) edge, depending on pattern
- Cross-bar (T-handle) or knurled handle at the proximal end for hand grip and rotation
- Sized by outer and inner (bore) diameter in mm, and by overall length
- Straight instrument; no joint, no lock
PatternsJamshidi · Illinois · trocar, toothed trephine and plunger (graft-harvest pattern)
The sizes this named pattern is made in
22 cm (8 3/4 in)
These are the sizes published for this named pattern specifically, rather than the wider range its kind of instrument is made in. They are not a stock list. Tell us the size you need and we will quote against it.
The standard sizes this kind of instrument is made in
Outer diameters of 5 mm and 8 mm recur across the trephine family, each paired with a narrower inner (bore) diameter that varies slightly by maker
These are the sizes the pattern is manufactured in across the trade. They are not a stock list. Tell us the size you need and we will quote against it.
This describes the bone biopsy needle as an article. 2 other articles in this catalog share it: the sentence above is what separates this one. This describes the article. The steel, the finish and the inspection step are set by the line you order.
Other versions
The same instrument in another figure, finish, size, color or case, each at its own address with its photograph.
Material and quality
| Line | Steel | Origin | Finish | Inspection |
|---|---|---|---|---|
| Economy line | AISI 410 | Pakistani or Taiwanese | satin, passivated | sample: visual + dimensional |
| Clinical line | AISI 420 | Pakistani or German | satin, passivated | sample + boil test |
| Premium line | AISI 420-440C | German or Japanese | fine polish, passivated | tighter sample + hardness test |
| Executive line | AISI 440C | German or Japanese | mirror polish, passivated | 100% inspection + laser mark |
This is the steel each line is made from as standard. A different origin can be supplied on request (a lower grade in Japanese steel, for example), agreed on your order.
Premium is the line where the choice is yours: 420 or 440C, agreed on your order. Economy is always 410 and Executive is always 440C. Those three are the instrument steels. Hollowware and sterilization containers are made in AISI 202 on a Clinical order and AISI 304 on a Premium or Executive one, and they are not offered in the Economy line at all, which is the section above.
True of every order
Instruments are marked to the buyer's requirement (TGI, unmarked, or the buyer's own brand), agreed on the order.
Customized packaging is part of what TGI supplies. Your own printed boxes, your labels, your brand on the pack, or plain export packing, whichever your market needs. The packing for your order is agreed with you and confirmed on the order.
Manufactured under the quality management system covered by TGI's ISO 9001:2015 and ISO 13485:2016 certificates. Certificate numbers and the issuer's registry are on the certification page. Open the certificates
Every batch of steel is ordered to a specified grade and arrives with the mill's own certificate, which identifies the mill and states the grade. TGI checks the material at the factory against its own requirement before it goes into production. That check is TGI's own inspection, not an independent laboratory test.
TGI manufactures in its own factory in Sialkot and also supplies articles made by contracted partner workshops, to TGI's specification. Which applies to a given article is confirmed on your order.
One-year guarantee on Premium and Executive tier instruments, hollowware and sterilization containers: any technical manufacturing defect, including material faults and rust, is replaced free of charge. Damage from handling or accidents is not covered. The year runs from the day the goods leave Sialkot.
If something is wrong with a delivery (a manufacturing defect, or a short or wrong article), tell us on WhatsApp within 7 days of delivery, with a video and photographs of what arrived. Replacement instruments are sent free of charge and dispatched within 24 hours of us seeing them; you pay the shipping, and they reach you as a normal order does.
Damage that happened after the goods left Sialkot is a claim against your carrier. The video of your parcel at the shipping office is sent to you before shipment and is the evidence that claim needs.
