Electrosurgical instruments
Reusable Electrosurgical Pencil
Web referenceTGI-C-53D433BBQuote this to us. It identifies this page, not a factory part number.
Also called Diathermy Pencil · Electrosurgical Handpiece
Built for repeated use rather than a single procedure: the same two-button hand-switch layout, but rated for a stated number of autoclave sterilization cycles instead of being discarded after one use.
The hand-held holder that carries an electrosurgical electrode and connects it to the generator. The body is a molded insulated grip, shaped to be held like a pen. At the front is a collet or hex hub that takes a standard electrode shaft; a hex hub keys the electrode so it cannot rotate in the holder. At the back, a fixed cable runs to the generator. There are two control types and they are different parts: a hand-control pencil carries two color-coded switches on the body, one for cut and one for coagulation, built either as a rocker or as two push buttons, and ends in a three-pin connector; a foot-control pencil has no switches on the body at all and ends in a single pin. Both single-use and reusable versions are made, and reusable ones are rated for a limited number of sterilization cycles.
Minimum order300 instrumentsThe minimum for electrosurgical instruments. Mixed orders are quoted against your list.
Materialplastic body
Lead timeInstruments ~2-3 weeks · full sets ~4-6 weeks after advance.
How it is built
- Molded insulated body in a pen grip form
- Front fitting: collet or hex hub taking a 2.4 mm (3/32 in) electrode shaft; a hex hub stops the electrode rotating

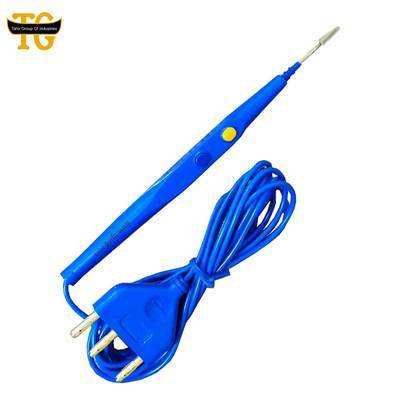

- Hand-control type: two color-coded switches on the body (rocker or push button)

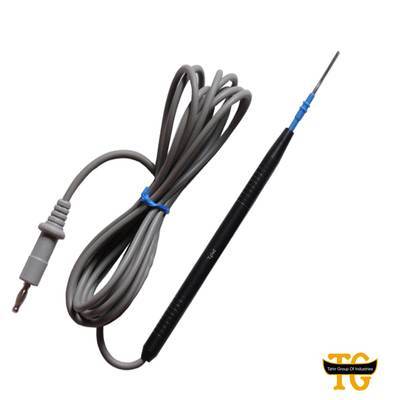

- Foot-control type: no switches on the body
- Fixed cable; three-pin connector on hand control, single-pin connector on foot control
- Made single-use and reusable; reusable versions are rated for a stated number of autoclave cycles
- Commonly kitted with an electrode, a holster and a tip-cleaning (scratch) pad
The standard sizes this kind of instrument is made in
Cable: 10 ft · Cable: 15 ft · Electrode shaft accepted: 2.3-2.4 mm (3/32 in) · Supplied with blade electrode: 25 mm (1 in)
These are the sizes the pattern is manufactured in across the trade. They are not a stock list. Tell us the size you need and we will quote against it.
This describes the electrosurgical pencil as an article. 3 other articles in this catalog share it: the sentence above is what separates this one. This describes the article. The material it is made of is printed above; it is not offered in the four steel lines.
True of every order
Instruments are marked to the buyer's requirement (TGI, unmarked, or the buyer's own brand), agreed on the order.
Customized packaging is part of what TGI supplies. Your own printed boxes, your labels, your brand on the pack, or plain export packing, whichever your market needs. The packing for your order is agreed with you and confirmed on the order.
Manufactured under the quality management system covered by TGI's ISO 9001:2015 and ISO 13485:2016 certificates. Certificate numbers and the issuer's registry are on the certification page. Open the certificates
Every batch of steel is ordered to a specified grade and arrives with the mill's own certificate, which identifies the mill and states the grade. TGI checks the material at the factory against its own requirement before it goes into production. That check is TGI's own inspection, not an independent laboratory test.
TGI manufactures in its own factory in Sialkot and also supplies articles made by contracted partner workshops, to TGI's specification. Which applies to a given article is confirmed on your order.
One-year guarantee on Premium and Executive tier instruments, hollowware and sterilization containers: any technical manufacturing defect, including material faults and rust, is replaced free of charge. Damage from handling or accidents is not covered. The year runs from the day the goods leave Sialkot.
If something is wrong with a delivery (a manufacturing defect, or a short or wrong article), tell us on WhatsApp within 7 days of delivery, with a video and photographs of what arrived. Replacement instruments are sent free of charge and dispatched within 24 hours of us seeing them; you pay the shipping, and they reach you as a normal order does.
Damage that happened after the goods left Sialkot is a claim against your carrier. The video of your parcel at the shipping office is sent to you before shipment and is the evidence that claim needs.
