Dental instruments
10Pcs Stainless Steel Impression Trays
TGI referenceTG-REF:1124Quote this to us. It is printed on TGI's own catalog photograph of this article.TGI-C-462B2777 Web reference. It identifies this page, not a factory part number.
A graduated set of perforated trays shaped to the dental arch, upper and lower, rather than a rectangular base-and-lid pair built to hold loose instruments.
An impression tray set is a group of dental impression trays supplied together, covering the arch forms and sizes a practice works with rather than one tray sold on its own. An impression tray is the rigid carrier that holds impression material against the teeth and gums while it sets, so the material comes out of the mouth as a negative record of the arch. These are stock trays, made to standard arch shapes in a range of sizes, as against a custom tray built for one patient. Each tray is shaped for one jaw - an upper tray closed across the palate, a lower tray open in the middle for the tongue - and is made full-arch or as a partial tray covering one segment of the arch. Perforated trays are pierced through the body so the material passes through the holes and is held by them once set, while non-perforated trays hold it at a rolled or beaded rim and with tray adhesive. Dentate and edentulous forms are both made, and trays are made both as reusable metal instruments and as single-use molded plastic, each with a flat handle at the front.
Minimum order200 instrumentsThe minimum for dental instruments. Mixed orders are quoted against your list.
Lead timeInstruments ~2-3 weeks · full sets ~4-6 weeks after advance.
Quality control
The inspection step is set by the line you order.
- Economy line
- sample: visual + dimensional
- Clinical line
- sample + boil test
- Premium line
- tighter sample + hardness test
- Executive line
- 100% inspection + laser mark
Finish A color is a second choice, made on top of the line. Colored finishes on request, on any instrument, in addition to the steel line. Evidenced: black · gold · rose gold · blue · rainbow (anodised titanium).
How it is built
- Shaped to one jaw: an upper tray closed across the palate, a lower tray open in the middle for the tongue

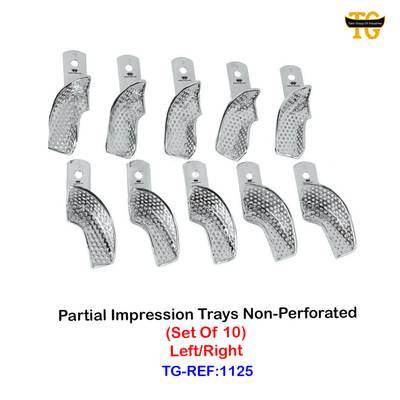

- Full-arch and partial (quadrant) bodies made in the same range, the partial handed left and right

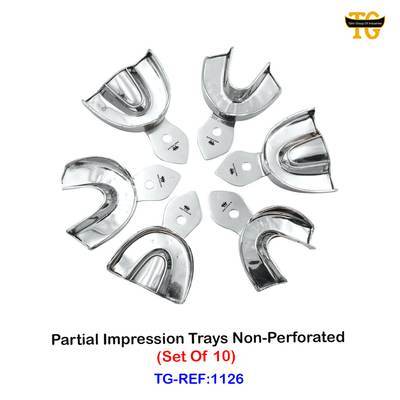

- Perforated bodies pierced across the tray; non-perforated bodies solid, with a rolled or beaded retaining rim
- Dentate and edentulous forms both made, the dentate deeper to clear standing teeth
- Flat handle projecting from the front of the rim

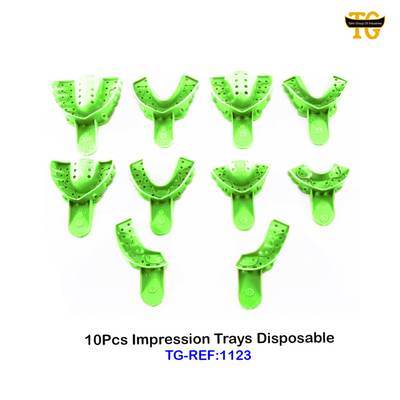

- Reusable metal trays, plain or with a colored coating, and single-use molded plastic trays
- Cataloged as a set of sizes and forms, and singly
PatternsPerforated · Non-perforated · Full arch · Partial / quadrant · Dentate · Edentulous · Single-use plastic
This describes the impression tray set as an article. 4 other articles in this catalog share it: the sentence above is what separates this one. This describes the article. The steel, the finish and the inspection step are set by the line you order.
Material and quality
| Line | Steel | Origin | Finish | Inspection |
|---|---|---|---|---|
| Economy line | AISI 410 | Pakistani or Taiwanese | satin, passivated | sample: visual + dimensional |
| Clinical line | AISI 420 | Pakistani or German | satin, passivated | sample + boil test |
| Premium line | AISI 420-440C | German or Japanese | fine polish, passivated | tighter sample + hardness test |
| Executive line | AISI 440C | German or Japanese | mirror polish, passivated | 100% inspection + laser mark |
This is the steel each line is made from as standard. A different origin can be supplied on request (a lower grade in Japanese steel, for example), agreed on your order.
Premium is the line where the choice is yours: 420 or 440C, agreed on your order. Economy is always 410 and Executive is always 440C. Those three are the instrument steels. Hollowware and sterilization containers are made in AISI 202 on a Clinical order and AISI 304 on a Premium or Executive one, and they are not offered in the Economy line at all, which is the section above.
True of every order
Instruments are marked to the buyer's requirement (TGI, unmarked, or the buyer's own brand), agreed on the order.
Customized packaging is part of what TGI supplies. Your own printed boxes, your labels, your brand on the pack, or plain export packing, whichever your market needs. The packing for your order is agreed with you and confirmed on the order.
Manufactured under the quality management system covered by TGI's ISO 9001:2015 and ISO 13485:2016 certificates. Certificate numbers and the issuer's registry are on the certification page. Open the certificates
Every batch of steel is ordered to a specified grade and arrives with the mill's own certificate, which identifies the mill and states the grade. TGI checks the material at the factory against its own requirement before it goes into production. That check is TGI's own inspection, not an independent laboratory test.
TGI manufactures in its own factory in Sialkot and also supplies articles made by contracted partner workshops, to TGI's specification. Which applies to a given article is confirmed on your order.
One-year guarantee on Premium and Executive tier instruments, hollowware and sterilization containers: any technical manufacturing defect, including material faults and rust, is replaced free of charge. Damage from handling or accidents is not covered. The year runs from the day the goods leave Sialkot.
If something is wrong with a delivery (a manufacturing defect, or a short or wrong article), tell us on WhatsApp within 7 days of delivery, with a video and photographs of what arrived. Replacement instruments are sent free of charge and dispatched within 24 hours of us seeing them; you pay the shipping, and they reach you as a normal order does.
Damage that happened after the goods left Sialkot is a claim against your carrier. The video of your parcel at the shipping office is sent to you before shipment and is the evidence that claim needs.
