Dental instruments
Extraction Forceps Set
TGI referenceTG-REF:731Quote this to us. It is printed on TGI's own catalog photograph of this article.TGI-C-43C36267 Web reference. It identifies this page, not a factory part number.

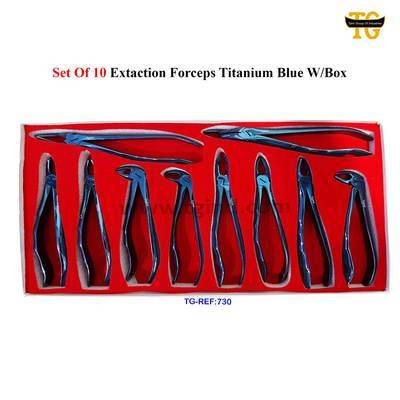

Also printed on the photographNo. 1 Upper centrals & canines · No. 7 Upper premolars · No. 13 Lower Premolars either side · No. 17 Upper Molars Right · No. 18 Upper Molars Left · No. 22 Lower Molars · No. 33A Lower Roots · No. 51A Upper Roots · No. 67A Upper Third Molars & Upper Wisdom either side · No.79 Lower Third Molars Printed on TGI's own catalogue photograph of this article.
Extraction forceps are patterned by tooth position (upper or lower, incisor, premolar or molar, left or right), so a set's coverage depends on which patterns it boxes.
A forceps set is a fixed group of separate forceps packed and sold together as one boxed or cased item, rather than a single instrument in its own right; the set is defined by which items it contains and how many, not by one length or design. Three forms are common in the trade. A general purpose or dressing set bundles a small number of different forceps for routine use, typically one dressing or dissecting forceps, one artery (hemostatic) forceps, and one tissue forceps, sometimes with a needle holder added, packed in a tray, pouch, or cassette. A dental extracting forceps set is a boxed range of tooth extraction forceps, each pattern shaped for a particular tooth position, either numbered (upper and lower incisors, premolars, molars, roots, and a hooked cowhorn pattern for lower molars) or labeled by position (for example upper left, upper right, lower universal). A graduated set bundles the same forceps pattern in a run of different lengths rather than mixing patterns, such as a three size Magill forceps set (6, 8, and 10 inch) used for airway and catheter work. In every form, each forceps inside keeps its own joint, jaw design, and size; the set itself is only the box and the piece count.
Minimum order200 instrumentsThe minimum for dental instruments. Mixed orders are quoted against your list.
Lead timeInstruments ~2-3 weeks · full sets ~4-6 weeks after advance.
Quality control
The inspection step is set by the line you order.
- Economy line
- sample: visual + dimensional
- Clinical line
- sample + boil test
- Premium line
- tighter sample + hardness test
- Executive line
- 100% inspection + laser mark
Finish A color is a second choice, made on top of the line. Colored finishes on request, on any instrument, in addition to the steel line. Evidenced: black · gold · rose gold · blue · rainbow (anodised titanium).
How it is built
- A named group of separate forceps items packed and sold as one item
- Three common trade forms: a basic dressing/dissecting plus artery plus tissue forceps set for general use; a dental extracting forceps set covering different tooth positions, numbered or labeled by position; and a graduated set of one forceps pattern in a run of sizes, such as a three size Magill forceps set
- Each forceps in the set keeps its own joint type, jaw design, and length; a mixed set does not share one construction, while a graduated set shares the same pattern at different lengths
- Usually supplied in a fitted tray, pouch, or cassette rather than loose
- Piece count and the mix of patterns or sizes included is the set's defining spec, not a single dimension
This describes the forceps set as an article. 3 other articles in this catalog share it: the sentence above is what separates this one. This describes the article. The steel, the finish and the inspection step are set by the line you order.
Main product
This article is one version of a product with a full specification page.
Material and quality
| Line | Steel | Origin | Finish | Inspection |
|---|---|---|---|---|
| Economy line | AISI 410 | Pakistani or Taiwanese | satin, passivated | sample: visual + dimensional |
| Clinical line | AISI 420 | Pakistani or German | satin, passivated | sample + boil test |
| Premium line | AISI 420-440C | German or Japanese | fine polish, passivated | tighter sample + hardness test |
| Executive line | AISI 440C | German or Japanese | mirror polish, passivated | 100% inspection + laser mark |
This is the steel each line is made from as standard. A different origin can be supplied on request (a lower grade in Japanese steel, for example), agreed on your order.
Premium is the line where the choice is yours: 420 or 440C, agreed on your order. Economy is always 410 and Executive is always 440C. Those three are the instrument steels. Hollowware and sterilization containers are made in AISI 202 on a Clinical order and AISI 304 on a Premium or Executive one, and they are not offered in the Economy line at all, which is the section above.
True of every order
Instruments are marked to the buyer's requirement (TGI, unmarked, or the buyer's own brand), agreed on the order.
Customized packaging is part of what TGI supplies. Your own printed boxes, your labels, your brand on the pack, or plain export packing, whichever your market needs. The packing for your order is agreed with you and confirmed on the order.
Manufactured under the quality management system covered by TGI's ISO 9001:2015 and ISO 13485:2016 certificates. Certificate numbers and the issuer's registry are on the certification page. Open the certificates
Every batch of steel is ordered to a specified grade and arrives with the mill's own certificate, which identifies the mill and states the grade. TGI checks the material at the factory against its own requirement before it goes into production. That check is TGI's own inspection, not an independent laboratory test.
TGI manufactures in its own factory in Sialkot and also supplies articles made by contracted partner workshops, to TGI's specification. Which applies to a given article is confirmed on your order.
One-year guarantee on Premium and Executive tier instruments, hollowware and sterilization containers: any technical manufacturing defect, including material faults and rust, is replaced free of charge. Damage from handling or accidents is not covered. The year runs from the day the goods leave Sialkot.
If something is wrong with a delivery (a manufacturing defect, or a short or wrong article), tell us on WhatsApp within 7 days of delivery, with a video and photographs of what arrived. Replacement instruments are sent free of charge and dispatched within 24 hours of us seeing them; you pay the shipping, and they reach you as a normal order does.
Damage that happened after the goods left Sialkot is a claim against your carrier. The video of your parcel at the shipping office is sent to you before shipment and is the evidence that claim needs.
