Dental instruments

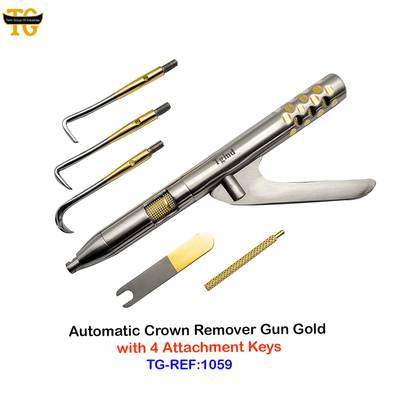

Automatic Crown Remover Gun
Web referenceTGI-C-56CF375DQuote this to us. It identifies this page, not a factory part number.
Also printed on the photograph4 Attachment Keys Printed on TGI's own catalogue photograph of this article.
Also called Crown and Bridge Remover · Crown Remover Gun · Crown Gripper Forceps · Crown Spreader
A self-contained instrument with a pre-tensioned spring that resets automatically after every trigger pull, rather than a spring the operator must recompress by hand between activations.
A crown remover is any of several dental instruments built to detach a cemented crown or bridge from a tooth. The trade groups three distinct mechanisms under the name. The first is a mechanized impact tool shaped like a small gun or pen: a hook or blade tip is screwed into the body, a stored force is released with a trigger or push button, and the resulting short impulse breaks the cement bond through the tip. This impulse is stored either by a slide hammer weight the operator draws back by hand, or by an internal spring that is set once and released by a trigger or button; several interchangeable tips are commonly supplied with a small wrench so the tip can be swapped for the tooth being worked on. The second mechanism is a hand instrument used after the crown has already been sectioned (cut) with a bur: a one-piece mini-elevator pattern with a notched hook tip wedges into the cut and breaks the remaining cement seal, and a spreader pattern with a forked or multi-pronged tip, made either as a one-piece instrument or as a forceps whose beaks open inside the cut, pries the cut halves apart. The third mechanism is a hinged gripping instrument, either a spring-hinge plier whose beak hooks or clamps onto the crown body, or a ring-handled, box-jointed forceps whose jaw faces carry a hard, wear-resistant insert to grip a temporary or plastic crown from opposing surfaces without slipping, so it can be pulled rather than struck free.
Minimum order200 instrumentsThe minimum for dental instruments. Mixed orders are quoted against your list.
Lead timeInstruments ~2-3 weeks · full sets ~4-6 weeks after advance.
Quality control
The inspection step is set by the line you order.
- Economy line
- sample: visual + dimensional
- Clinical line
- sample + boil test
- Premium line
- tighter sample + hardness test
- Executive line
- 100% inspection + laser mark
Finish A color is a second choice, made on top of the line. Colored finishes on request, on any instrument, in addition to the steel line. Evidenced: black · gold · rose gold · blue · rainbow (anodised titanium).
How it is built
- Slide-hammer pattern: fixed shaft, a weight the operator slides back by hand, and a stop the weight strikes
- Spring-release pattern: a body holding a pre-set spring, released by a trigger (pistol-grip body) or a push button (straight, pen-shaped body)
- Interchangeable, screw-fitted hook or blade tips on the mechanized patterns, commonly supplied as a set of several tips with a small tip-changing wrench

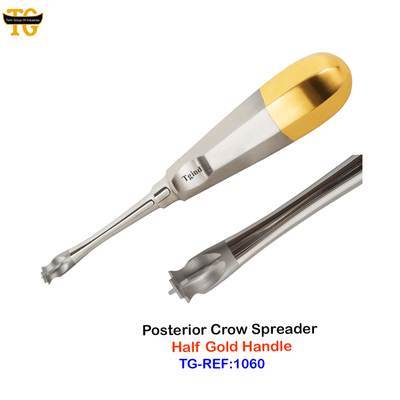

- One-piece hand pattern: a mini-elevator with a notched hook tip, or a spreader with a forked or multi-pronged tip, each used only after the crown is sectioned with a bur; made in straight and right-angle (90 degree) forms

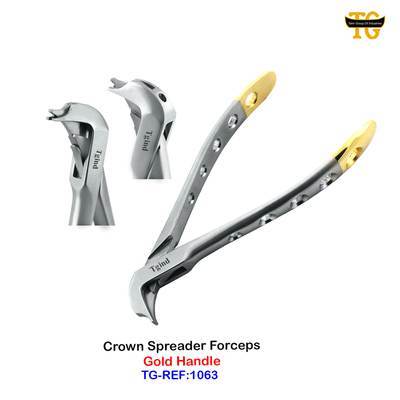

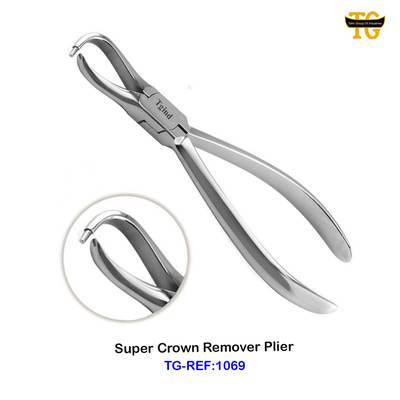

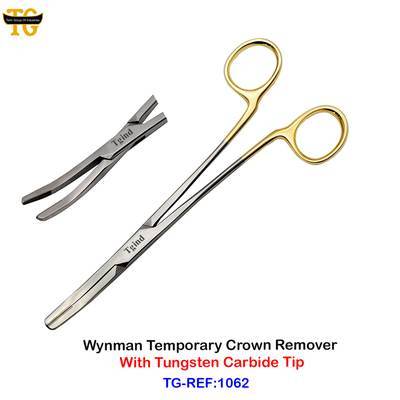

- Hinged gripping pattern: a spring-hinge plier with a hooked or padded beak, or a ring-handled forceps with a box joint and jaw faces faced with a hard, wear-resistant insert
- Reusable, autoclavable metal construction
PatternsManual slide-hammer gun · Spring-loaded automatic gun (pistol-grip) · Push-button spring gun (straight, pen-shaped body) · Mini-elevator hand pattern (used after the crown is sectioned) · Spreader pattern, one-piece or forceps (forked or multi-pronged tip, used after the crown is sectioned) · Spring-hinge gripping plier · Ring-handled, box-jointed gripping forceps
This describes the crown remover as an article. 10 other articles in this catalog share it: the sentence above is what separates this one. This describes the article. The steel, the finish and the inspection step are set by the line you order.
Other versions
The same instrument in another figure, finish, size, color or case, each at its own address with its photograph.
Material and quality
| Line | Steel | Origin | Finish | Inspection |
|---|---|---|---|---|
| Economy line | AISI 410 | Pakistani or Taiwanese | satin, passivated | sample: visual + dimensional |
| Clinical line | AISI 420 | Pakistani or German | satin, passivated | sample + boil test |
| Premium line | AISI 420-440C | German or Japanese | fine polish, passivated | tighter sample + hardness test |
| Executive line | AISI 440C | German or Japanese | mirror polish, passivated | 100% inspection + laser mark |
This is the steel each line is made from as standard. A different origin can be supplied on request (a lower grade in Japanese steel, for example), agreed on your order.
Premium is the line where the choice is yours: 420 or 440C, agreed on your order. Economy is always 410 and Executive is always 440C. Those three are the instrument steels. Hollowware and sterilization containers are made in AISI 202 on a Clinical order and AISI 304 on a Premium or Executive one, and they are not offered in the Economy line at all, which is the section above.
True of every order
Instruments are marked to the buyer's requirement (TGI, unmarked, or the buyer's own brand), agreed on the order.
Customized packaging is part of what TGI supplies. Your own printed boxes, your labels, your brand on the pack, or plain export packing, whichever your market needs. The packing for your order is agreed with you and confirmed on the order.
Manufactured under the quality management system covered by TGI's ISO 9001:2015 and ISO 13485:2016 certificates. Certificate numbers and the issuer's registry are on the certification page. Open the certificates
Every batch of steel is ordered to a specified grade and arrives with the mill's own certificate, which identifies the mill and states the grade. TGI checks the material at the factory against its own requirement before it goes into production. That check is TGI's own inspection, not an independent laboratory test.
TGI manufactures in its own factory in Sialkot and also supplies articles made by contracted partner workshops, to TGI's specification. Which applies to a given article is confirmed on your order.
One-year guarantee on Premium and Executive tier instruments, hollowware and sterilization containers: any technical manufacturing defect, including material faults and rust, is replaced free of charge. Damage from handling or accidents is not covered. The year runs from the day the goods leave Sialkot.
If something is wrong with a delivery (a manufacturing defect, or a short or wrong article), tell us on WhatsApp within 7 days of delivery, with a video and photographs of what arrived. Replacement instruments are sent free of charge and dispatched within 24 hours of us seeing them; you pay the shipping, and they reach you as a normal order does.
Damage that happened after the goods left Sialkot is a claim against your carrier. The video of your parcel at the shipping office is sent to you before shipment and is the evidence that claim needs.
