Dental instruments
Advanced Rubber Dam Restorative - Set Of 50
TGI referenceTG-REF:1268Quote this to us. It is printed on TGI's own catalog photograph of this article.TGI-C-199C49A6 Web reference. It identifies this page, not a factory part number.
Also printed on the photograph6Pcs Brinker Clamps Black · No. B1 · No. B2 · No. B3 · No. B4 · No. B5 · No. B6 · 12Pcs Rubber Dam Clamps With Tray · 6Pcs Winged Clamps Gold · No. 3 · No. 4 · No. 14A · No. 201 · No. 202 · No. 205 · 6Pcs Brinker Clamps Silver · 10Pcs Rubber Dam Clamps · Ainsworth Plier · Ivory Stock Forceps · Ivory Light Forceps · Ivory Matrix Retainer · Ivory Punch Forceps · Brewer Forceps · Frame 4x4 · Tofflemire Matrix Retainer · Chip Blower Water Syringe · Clamps Code: No. 0,No. 00,No. 2,No. 2A,No. 3,No. 3A,No. 4,No. 7,No. 8,No. 12A,No. 13A,No. 14A · Codes: No. 00, No. 3, No. 4, W8A, No. 12A,No. 13A, No. 27, No. 29, No. 210, No. 212 · 6Pcs Brinker Clamps (Silver) · Code: · No. B1 - Lower Molars/No. B2 - Upper Left Molars · No. B3 - Upper Right Molars/No. B4 - Anterior & Canines · No. B5 - Class V Restorations On All Teeth · No. B6 - Class V Restorations On All Teeth · 6Pcs Brinker Clamps (Black Coated) · No. B1 - Lower Molars No. B2 - Upper Left Molars · No. B3 - Upper Right Molars No. B4 - Anterior & Canines · 6Pcs Winged Clamps (Gold Coated) · Code: 3#, 4#, 14A, 201, 202, 205 · Brewer Clamp Forceps · Ivory Light Clamp Forceps · Ainsworth Hole Punch Plier · Matrix Tofflemire Retainer · Rubber Dam Frame 4x4" Printed on TGI's own catalogue photograph of this article.
Also called Dental Dam Kit · Kofferdam Kit
A boxed set of the instruments used together to isolate one or a few teeth behind a thin sheet during dental treatment. It bundles a sheet punch, a range of tooth clamps, clamp-placing forceps and a frame that holds the perforated sheet stretched open around the mouth. A kit is sold as this complete working set; the sheet, frame, clamp and punch are also sold separately as single items outside the kit.
Minimum order200 instrumentsThe minimum for dental instruments. Mixed orders are quoted against your list.
Lead timeInstruments ~2-3 weeks · full sets ~4-6 weeks after advance.
Quality control
The inspection step is set by the line you order.
- Economy line
- sample: visual + dimensional
- Clinical line
- sample + boil test
- Premium line
- tighter sample + hardness test
- Executive line
- 100% inspection + laser mark
Finish A color is a second choice, made on top of the line. Colored finishes on request, on any instrument, in addition to the steel line. Evidenced: black · gold · rose gold · blue · rainbow (anodised titanium).
How it is built
- Sheet: latex or non-latex (nitrile/silicone) square, stretched over the frame and perforated by the punch before use
- Frame: stainless steel (e.g. Young's pattern, U-shaped with prongs) or radiolucent plastic (e.g. Nygaard-Østby pattern), holds the sheet's edges taut away from the mouth
- Clamp: spring-steel jaws that grip around a tooth at the gumline, shaped differently per tooth group (anterior, premolar, molar, cervical)
- Punch: a rotating plate with several graduated hole sizes and a plunger that cuts a clean hole in the sheet for each tooth
- Forceps: beaked jaws that engage holes on the clamp's bow to open, seat and remove it
PatternsYoung's frame · Nygaard-Østby frame · Ivory-pattern clamp forceps
The standard sizes this kind of instrument is made in
5 in × 5 in (127 × 127 mm) sheet · 6 in × 6 in (152 × 152 mm) sheet
These are the sizes the pattern is manufactured in across the trade. They are not a stock list. Tell us the size you need and we will quote against it.

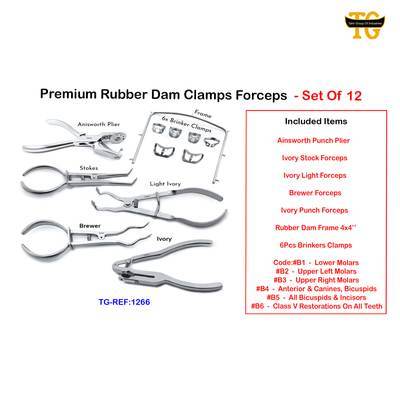

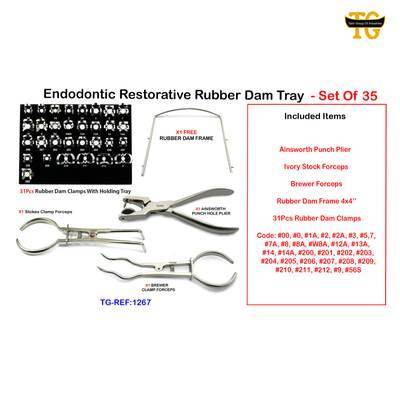

This describes the rubber dam kit as an article. 2 other articles in this catalog share it. This describes the article. The steel, the finish and the inspection step are set by the line you order.
Material and quality
| Line | Steel | Origin | Finish | Inspection |
|---|---|---|---|---|
| Economy line | AISI 410 | Pakistani or Taiwanese | satin, passivated | sample: visual + dimensional |
| Clinical line | AISI 420 | Pakistani or German | satin, passivated | sample + boil test |
| Premium line | AISI 420-440C | German or Japanese | fine polish, passivated | tighter sample + hardness test |
| Executive line | AISI 440C | German or Japanese | mirror polish, passivated | 100% inspection + laser mark |
This is the steel each line is made from as standard. A different origin can be supplied on request (a lower grade in Japanese steel, for example), agreed on your order.
Premium is the line where the choice is yours: 420 or 440C, agreed on your order. Economy is always 410 and Executive is always 440C. Those three are the instrument steels. Hollowware and sterilization containers are made in AISI 202 on a Clinical order and AISI 304 on a Premium or Executive one, and they are not offered in the Economy line at all, which is the section above.
True of every order
Instruments are marked to the buyer's requirement (TGI, unmarked, or the buyer's own brand), agreed on the order.
Customized packaging is part of what TGI supplies. Your own printed boxes, your labels, your brand on the pack, or plain export packing, whichever your market needs. The packing for your order is agreed with you and confirmed on the order.
Manufactured under the quality management system covered by TGI's ISO 9001:2015 and ISO 13485:2016 certificates. Certificate numbers and the issuer's registry are on the certification page. Open the certificates
Every batch of steel is ordered to a specified grade and arrives with the mill's own certificate, which identifies the mill and states the grade. TGI checks the material at the factory against its own requirement before it goes into production. That check is TGI's own inspection, not an independent laboratory test.
TGI manufactures in its own factory in Sialkot and also supplies articles made by contracted partner workshops, to TGI's specification. Which applies to a given article is confirmed on your order.
One-year guarantee on Premium and Executive tier instruments, hollowware and sterilization containers: any technical manufacturing defect, including material faults and rust, is replaced free of charge. Damage from handling or accidents is not covered. The year runs from the day the goods leave Sialkot.
If something is wrong with a delivery (a manufacturing defect, or a short or wrong article), tell us on WhatsApp within 7 days of delivery, with a video and photographs of what arrived. Replacement instruments are sent free of charge and dispatched within 24 hours of us seeing them; you pay the shipping, and they reach you as a normal order does.
Damage that happened after the goods left Sialkot is a claim against your carrier. The video of your parcel at the shipping office is sent to you before shipment and is the evidence that claim needs.
